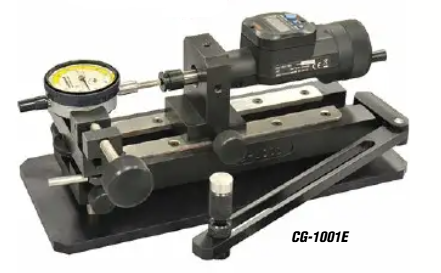

CG-1001E | Bench Calibrator

The Gagemaker calibrator gage CG-1001E, calibrate gages and indicators per AGD specification. These calibrators are ideal for shops with space concerns and/or with numerous gages with less stringent calibration requirements than an MT-4000 provides.

The CG-1001 uses a non-rotating spindle screw type micrometer which reads directly to .0001” and can be estimated to the closest .00005”. The CG-1001E uses a digital version with an SPC Output.

Disassembling the gage is not required for calibration. The vise assembly allows full vertical and horizontal adjustment of the gage or indicator clamped in the vise jaws. During calibration, an outboard arm and arm support allows for larger gage assemblies to be securely supported.

Four supplied accessory fixtures will help speed up calibration while maintaining accuracy. Bench calibrators are shipped in a durable custom Pelican shipping/storage case.

Bench Calibrator Gage, Electronic with SPC Output, 0.00005" / 0.001" mm Resolution, Digital
