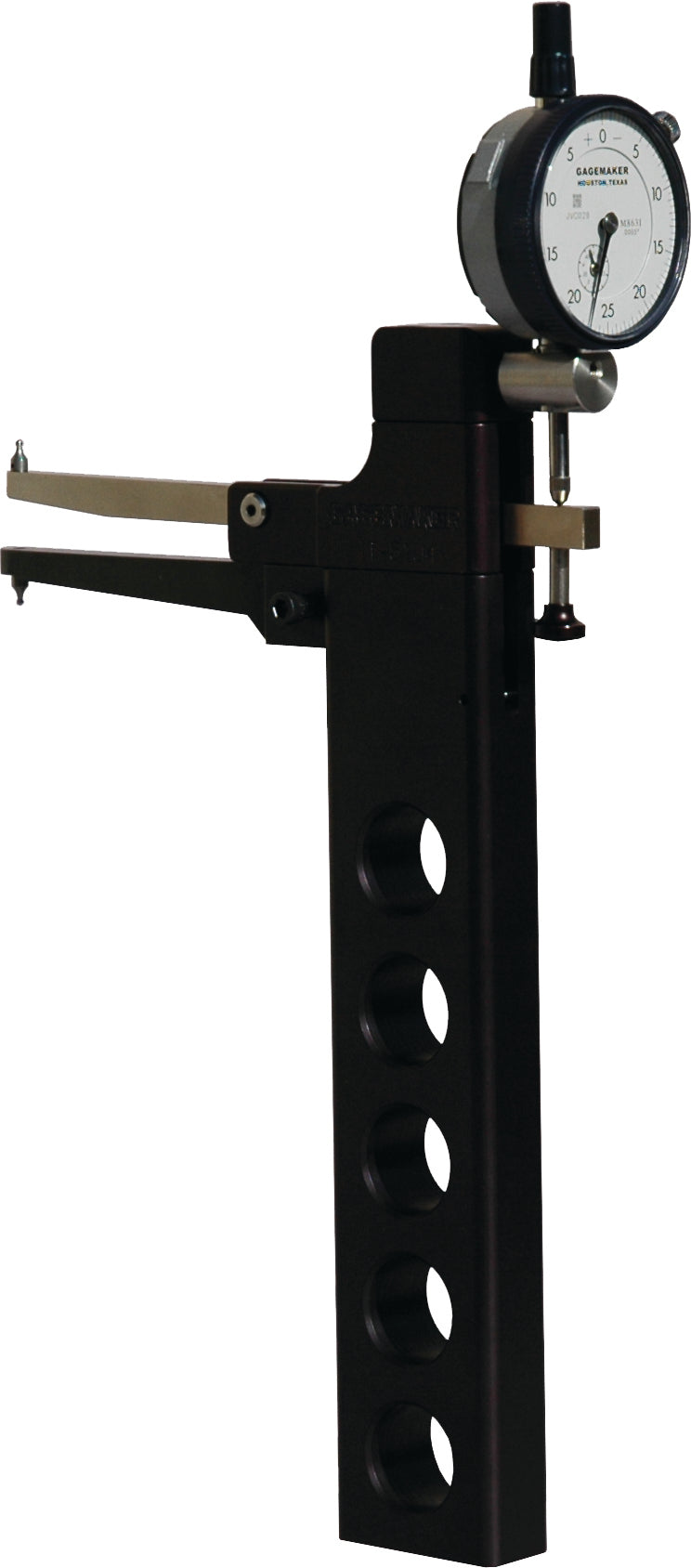

IT-5106-30 | Internal Diameter/Groove Gages | Pin Seal Diameter Gages
Internal diameter/groove gage with points at 30° angle, Range: 1½” – 10” (38.1 mm – 254 mm), Depth: 6” (152.4 mm), Indicator Travel: ½”, Indicator Resolution: .0005”, Angled Points: Yes, 30°
Precision Measurement for Large‑Diameter, 30° Angled Internal Features
The Gagemaker IT‑5106‑30 Internal Diameter/Groove Gage is a high‑accuracy inspection tool designed for measuring internal diameters, grooves, chamfers, and sealing surfaces inside large tubular components — specifically those with 30° angled internal profiles.
As the angled‑point variant of the IT‑5106, this model uses 30° contact points to accurately engage tapered, chamfered, or angled internal surfaces that straight points cannot properly measure.
Built for machining, threading, and premium connection QC environments, the IT‑5106‑30 delivers consistent, repeatable measurements across demanding industrial applications.
