IT-5106-45 | Internal Diameter/Groove Gages | Pin Seal Diameter Gages

Internal diameter/groove gage with points at 45° angle, Range: 1½” – 10” (38.1 mm – 254 mm) Depth: 6” (152.4 mm), Indicator Travel: ½”, Indicator Resolution: .0005”, Angled Points: Yes, 45°

Precision Measurement for Large‑Diameter, 45° Angled Internal Features

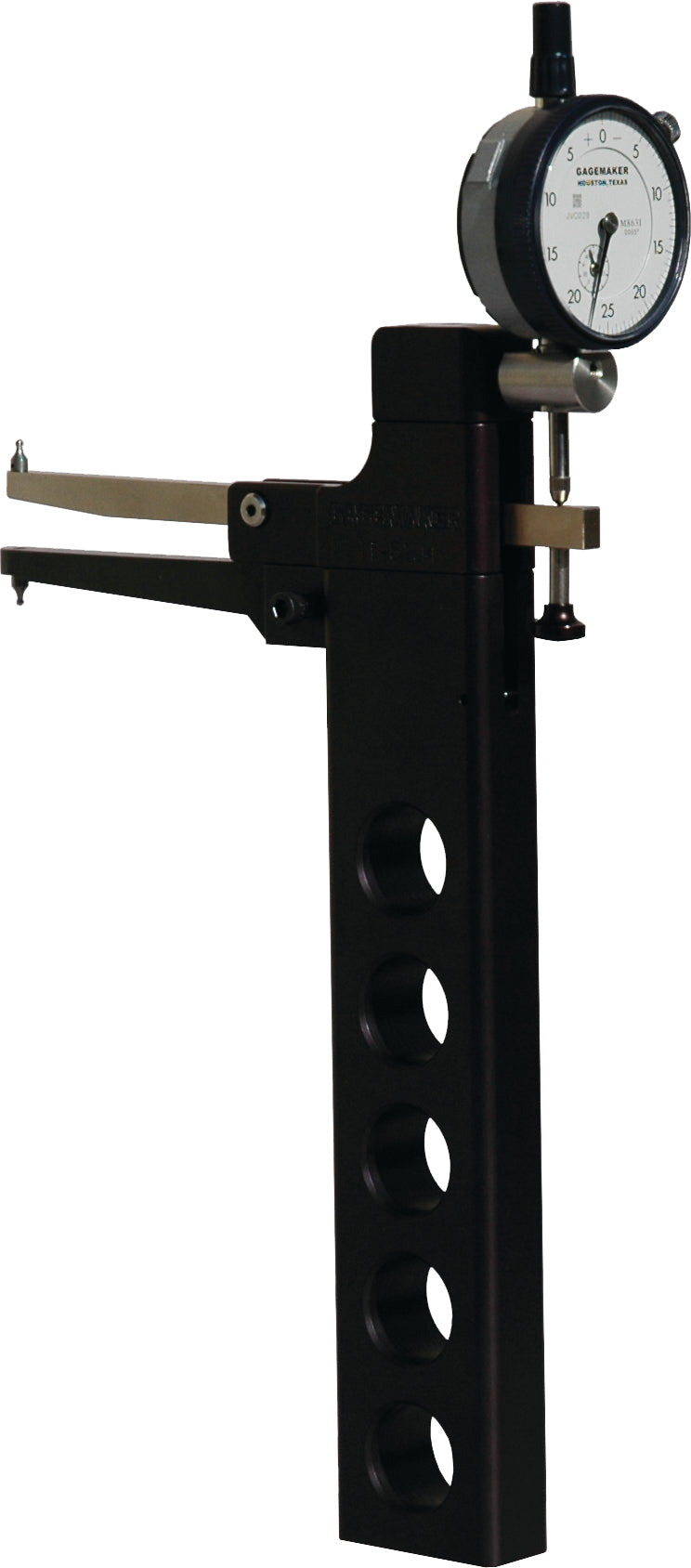

The Gagemaker T‑5106‑45 Internal Diameter/Groove Gage is a high‑accuracy inspection tool engineered for measuring internal diameters, grooves, chamfers, and sealing surfaces inside large tubular components — specifically those with 45° angled internal profiles.

As the 45° angled‑point variant of the T‑5106, this model uses steep‑angle contact points to accurately engage chamfered, tapered, or angled internal surfaces that straight points cannot properly measure.

Built for machining, threading, and premium connection QC environments, the T‑5106‑45 delivers consistent, repeatable measurements across demanding industrial applications.

GAGEMAKER IT-5106-45: Internal Taper & Groove Diameter
Gage, 6" Depth, 1-1/2" - 10" Diameter, 45°, 0.0005 Indicator
