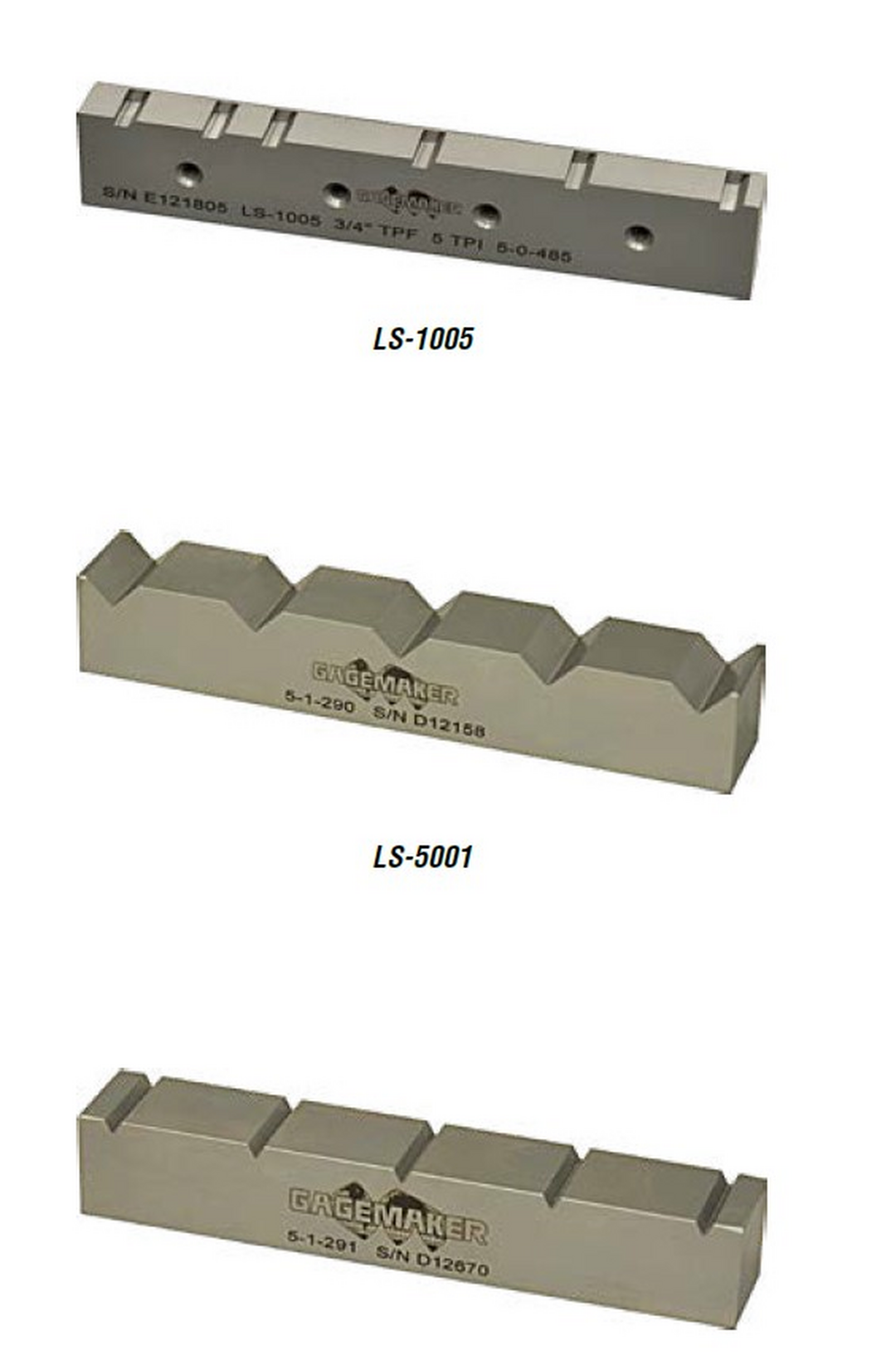

LS-1009 | Lead Gage Setting Standards | Lead Gages
Lead standard for 5 TPI, 3” TPF, V-0.040 thread forms
Connection: API Full Hole 2⅞”, 3½”, & 4½” & API Regular 2⅜” - 4½”, TPI: 5, TPF: 3” Thread Form: V-0.040
Gagemaker’s precision lead gage setting standards are manufactured in accordance with ANSI Specifications, API Specification 5B, and API Specification 7-2.
Lead gage standards are used to set the Lead Gage prior to inspection.
The Gagemaker LS‑1009 is a precision‑machined lead setting standard designed for calibrating and verifying lead gages used in API and premium thread inspection. Manufactured to exact tolerances, this standard provides a stable, certified reference surface that ensures your lead gage delivers accurate, repeatable measurements every time.
GAGEMAKER LS-1009: Lead Standard 5 Threads per Inch, 3.000 TPF
