MT-3012-50 | Gage Setting and Part Measurement Systems – MIC TRAC 3000

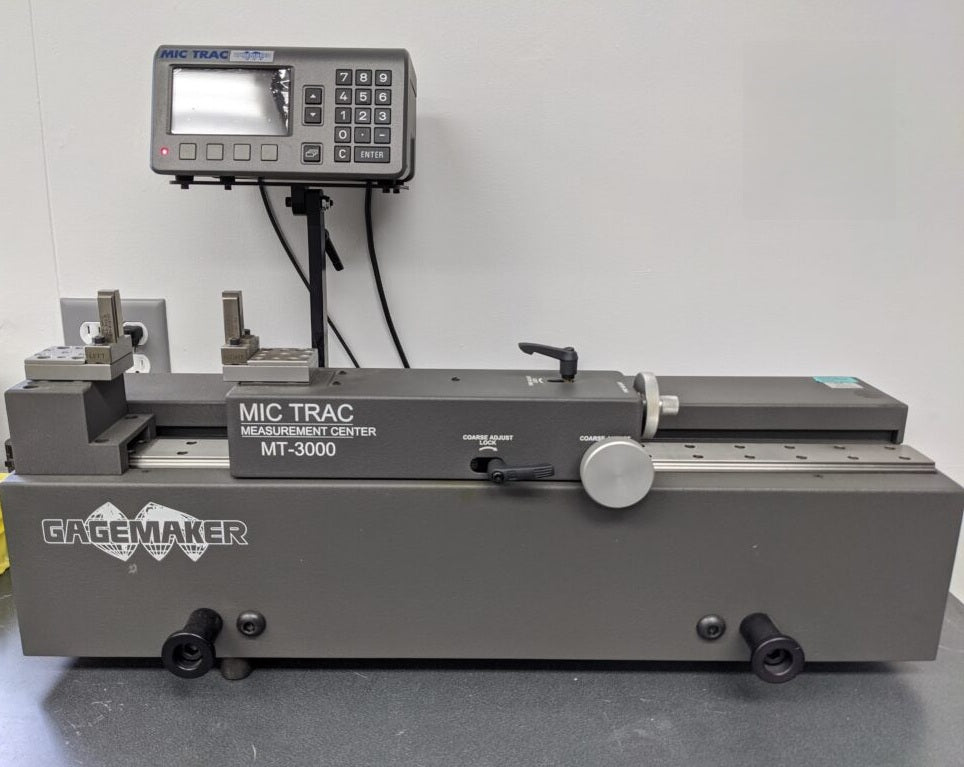

MIC TRAC™ 12″ with DRO, Basic Setting System

Measuring Capacity:  Internal -0″ to 12″, External – 1½” to 13½”

The MIC TRAC™ System is an electronic, adjustable calibration and measurement center that will inspect parts, preset indicator style gages, and calibrate a variety of hand held inspection gages.

The MIC TRAC 3000 System (MT-3012-50) is suited for use nearly anywhere, on a shop floor to a calibration lab.

The MIC TRAC™ System contains receiver pads, which are precision ground in matched sets, and used as parallel surfaces for measuring or holding fixtures.

The MT-3012-50 digital readout (DRO) displays measurement readings in inch or metric.*

The MT-3012-50 measurement system includes the base unit, which houses the optical scale and provides the system’s precision measuring capability.

The base unit may include an optional Force-Lok™ feature that provides a constant measurement force, which improves repeatability from operator to operator.

A computer may be substituted for the system’s digital readout unit (DRO).

This computer comes pre-installed with our CERTIFI™ Gage Calibration software and our TDWin™ Thread Engineering software.

For gage calibration, the optional CAL-PAK fixture package can be included with any MIC TRAC™ system.

The CAL-PAK is an assortment of fixtures that attach to the base unit for holding gages securely during the calibration process.

Proper positioning of the gage improves the accuracy of the calibration and provides more consistent results.

Calibrate Hand Held Gages, and Preset Indicator Style Gages

• Delivers high accuracy in a variety of environments including the shop floor
• Serves as a setting master for gages produced by various manufacturers
• Provides fast, accurate dimensional part measurements
• Ensures measurement repeatability from operator to operator using force lok accessory
• Calibrates hand-held gages in-house for faster turnaround
• Accuracies to .0001″ (2.54µ) traceable to the NIST
• Resolution of .00005″
• State of the Art Assembly of Internal Glass Scale, Precision Linear Bearing and a Set of Precisely Lapped Measuring Blocks
• Electronic Adjustable Measurement Master with Ranges from 0″ to 12″ (Units Up to 60″ Ranges)
• Digital Readout Provides Measurement Reading in Inch or Metric
• Durable Construction Allows Use in Practically Any Environment
• Unique Force Lok feature available if you plan to measure parts. It improves repeatability from operator to operator.

MIC TRAC Base Unit, 12"Includes:

Digital Readout & TF-PL Blocks. Range: Internal 0" to 12", External 1-1/2" to 13-1/2"
