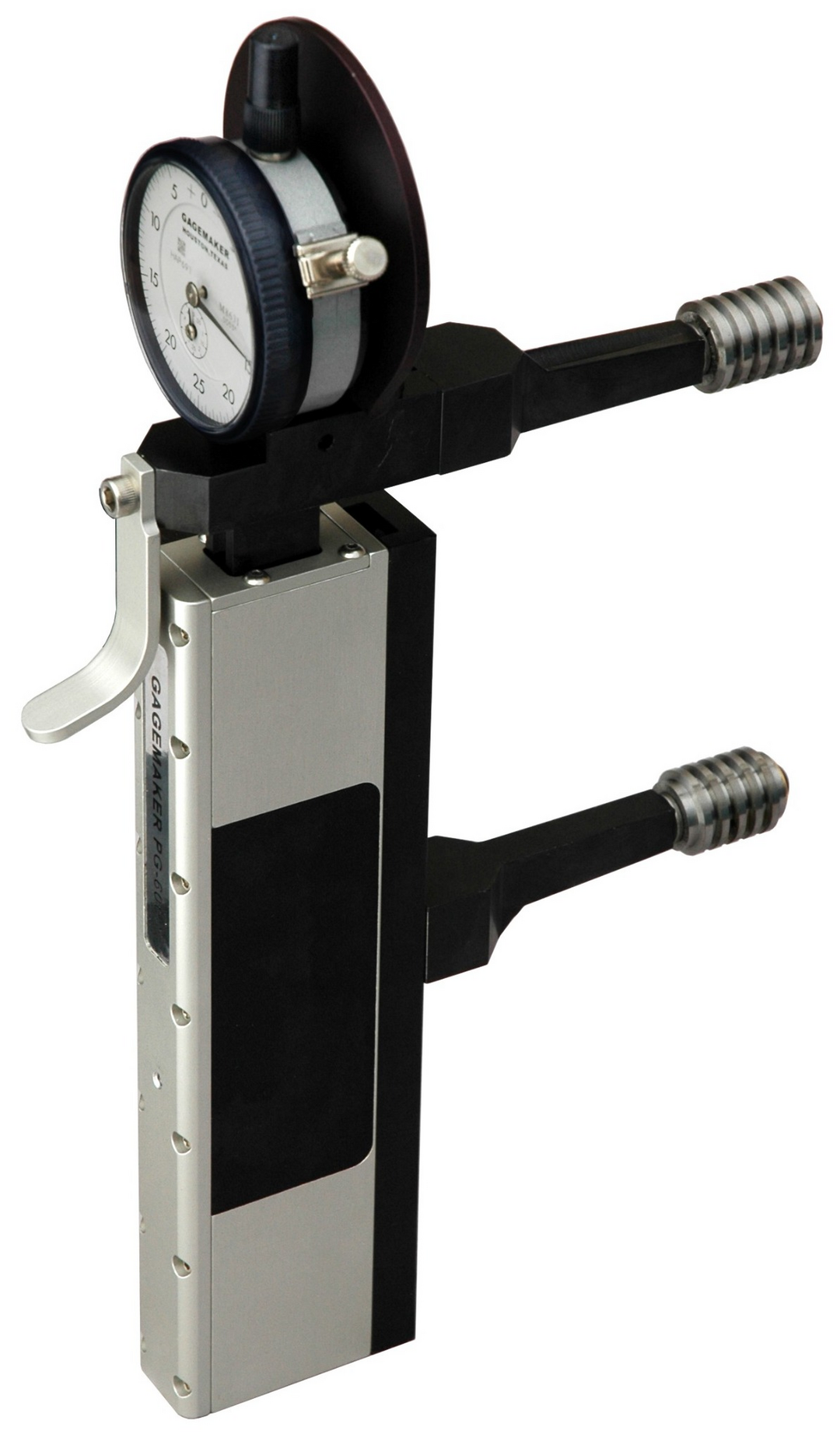

PG-6000 | Internal Functional Size Thread Inspection Gages | Functional Size Gages

Internal Thread Roll Gage, 2½” reach,  Range: 1½” - 9” (38 mm - 228.6 mm),

Range:   1-1/2″ – 9″ / (38 mm – 228.6 mm)

Indicator Travel:           .500″

Indicator Resolution:    .0005″

These functional size inspection (or “GO/NO GO”) gages measure internal thread diameters ranging from 1-1/2” – 32″.

The gages are adjustable within a size range and use interchangeable thread rolls to measure different pitch threads.

Setting dimensions for the functional pitch diameter gages are provided by the TDWIN Thread Disk Software.

Indicators have a .5″ travel and .0005″ resolution with higher resolutions available.

GAGEMAKER PG-6000: Thread Roll Gage, Internal 1-1/2" - 9" Range
