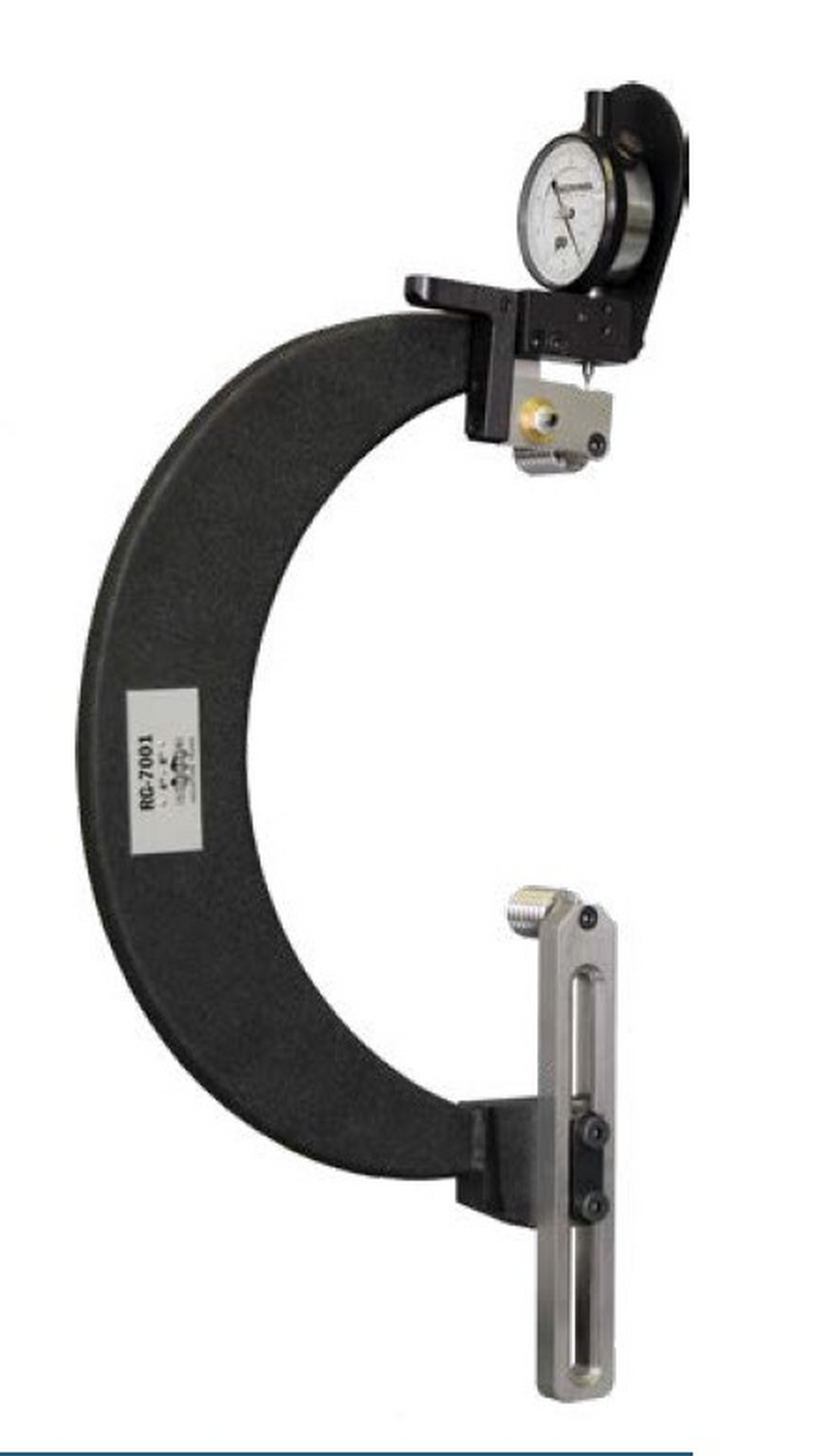

RG-7005-M | External Functional Size Thread Inspection Gages | Functional Size Gages

External Functional Size Thread Roll Gage with metric indicator, Range: 20” – 24”
(508 mm – 609.6 mm), Indicator Resolution: .01 mm, Indicator Travel: 10 mm

Ultra‑Heavy‑Duty Pitch Diameter Inspection for Oversized Threads — Metric Model

The Gagemaker RG‑7005‑M is a high‑capacity external thread roll gage engineered for inspecting the pitch diameter of extremely large threaded components. Equipped with a metric indicator, this model delivers smooth, repeatable, and highly accurate measurements ideal for oilfield manufacturing, heavy‑machining operations, and calibration laboratories working with oversized thread forms.

GAGEMAKER RG-7005-M: Thread Roll Gage, External 20" - 24" Range, Metric Indicator
