Gagemaker’s TDWIN Taper X-3™ software simplifies the API specifications that control connection quality. TDWIN Taper produces dimensional drawings and inspection data for API downhole tubular connections based on the most current industry standards. All the necessary details to machine, inspect and document tubular connection threads are available in one convenient program.

TDWIN Taper X-3 provides easy access to information for both preferred and non-preferred Rotary Shouldered Connections, Tubing and Casing Connections, and any combination of Crossover. The program offers standard connection types and sizes. TDWIN Taper X-3™ relies on API and industry standard tables and tolerances. It displays connection drawings, inspection gage information, and setup and inspection reports.

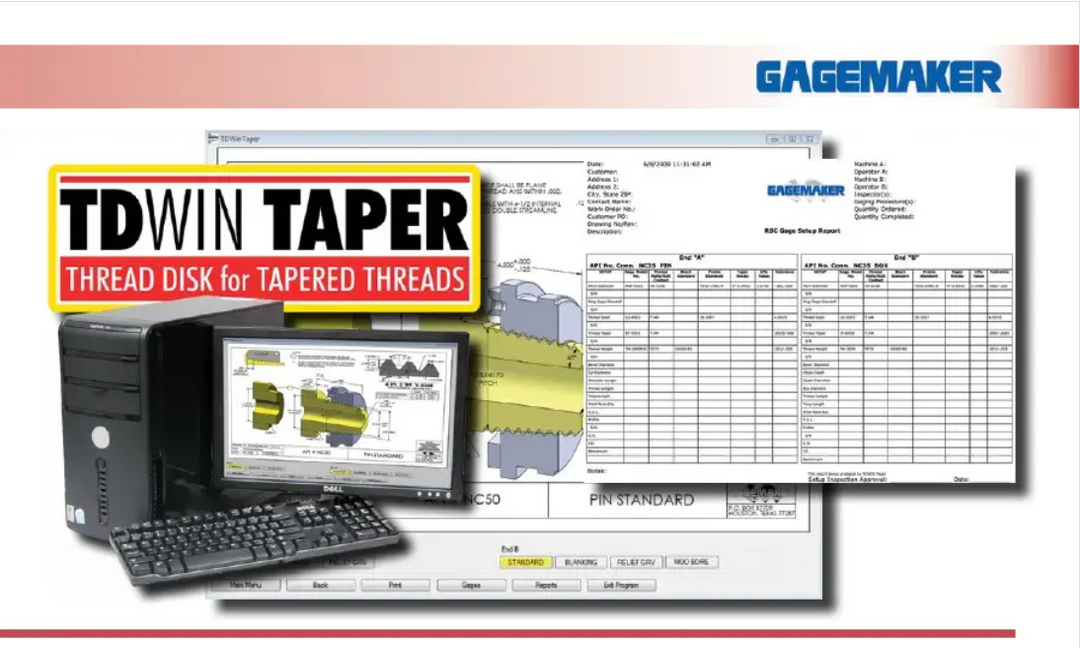

The software displays printable drawing suitable for manufacturing. The drawings follow ASME Y14.5 standards for industry compatibility. Print gage setup and inspection reports with your company logo and work order information. The program offerss the choice to save reports and jobs for future references.

GAGEMAKER TDWIN TAPER X-3: Thread Disk Software
for API Tapered Threads - Web Edition Active for 3 years, Email Address Required.
