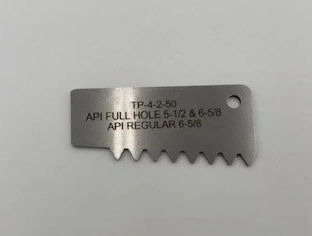

TP-4-2-50 | Rotary Shouldered Connection Form Profiles | Tapered Thread Form Profile Gages |Thread Form Profiles
| Connection Type | Connection Size | TPI | TPF | Thread Form | Model |
|---|---|---|---|---|---|
| API Regular | 6⅝” | 4 | 2” | V-0.050 | TP-4-2-50 |
| API Full Hole | 5½” & 6⅝” | 4 | 2” | V-0.050 | TP-4-2-50 |
The Gagemaker TP‑4‑2‑50 is a precision tapered thread form profile gage engineered for fast, accurate inspection of rotary shouldered connections. It provides a quick visual check of thread form quality, helping machinists and inspectors detect wear, damage, or machining errors before the connection is put into service.
Key Features
-
Designed for Rotary Shouldered Connections Suitable for verifying thread form integrity on premium and API‑style connections.
-
Accurate Thread Form Verification Identifies common thread issues such as: chipped inserts, lead error, burrs, debris, flat crests, stretched threads, rolled‑over threads, and other form deviations.
-
Precision Tapered Profile Specs
-
TPI: 4
-
TPF: 2"
-
Thread Form: V‑0.050
-
-
Fast Visual Inspection Insert the profile into the threads and shine a light behind it to instantly reveal imperfections.
-
Industrial‑Grade Durability Manufactured by Gagemaker for long‑term accuracy and dependable performance in both shop and field environments.
GAGEMAKER TP-4-2-50: Thread Profile
4 Threads per Inch, 2.000 TPF, V-0.050 6-5/8" API Regular 5-1/2" & 6-5/8" API Full Hole
