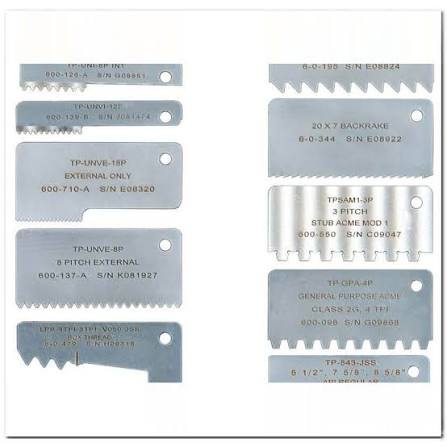

TP-MI-__P | Straight Thread Form Profile Gages | Thread Form Profiles

Internal ISO Metric series thread form profile gage,

Thread Form: ISO Metric, Type: Internal

The Gagemaker TP‑MI‑__P Series provides fast, accurate inspection of ISO Metric internal straight threads, ensuring your threaded components meet proper form, pitch, and profile requirements. These precision‑cut profile gages offer an immediate visual check of thread quality, helping manufacturers detect defects early and maintain consistent production standards.

Key Features

• Designed for ISO Metric Internal Threads Confirms correct form, pitch, and profile for ISO Metric straight internal threads.

• Instant Visual Verification Light‑based inspection quickly reveals machining defects or wear.

• Precision Manufacturing Gagemaker’s high‑accuracy profiles ensure consistent, repeatable results.

• Durable & Shop‑Floor Ready Built for daily use in demanding industrial environments.

• Fast, Simple, and Cost‑Effective No setup required—insert, illuminate, inspect.

TP‑MI‑__P items include: 1P, 2P, 3P, 4P, 6P, 1.25P, 1.5P, 1.75P, 2.5P
